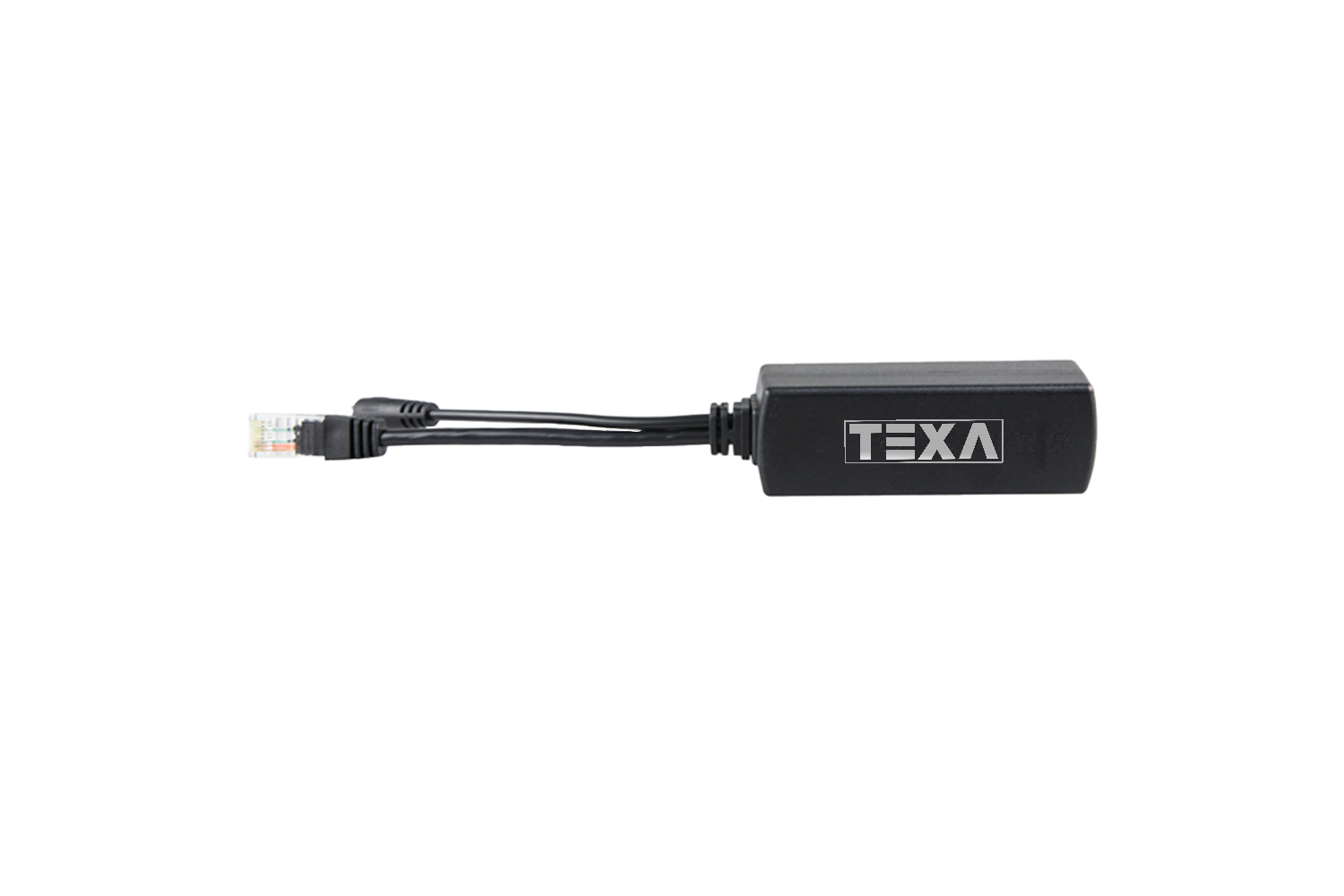

10/100M PD PoE Splitter Cable

Specifications

Model: TN3PIAC-at

Ports:
- 1 × 10/100Base-TX RJ45 Port (Data Input)
- 1 × 8P Male Output Port (Data Output)
- 1 × DC5521 Power Port
Ethernet Support: 10/100Base-TX auto-sensing, full/half duplex, MDI/MDI-X self-adaptation
Transmission Rate: 10/100 Mbps
Twisted Pair Standard:
- 10BASE-T: Cat3, 4, 5 UTP (≤100m)
- 100BASE-TX: Cat5 or later UTP (≤100m)
Network Protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
LED Indicator: POE (Yellow)
PoE Standard: IEEE 802.3af/at (PD Mode)
Power Supply Pins: 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-)
Input Voltage: 44–57V DC
Output Voltage:
- Default: 12V DC ±0.5V
- Optional: 5V / 9V / 24V DC (Customizable)
- Default DC5521 Plug, Optional Micro USB Plug
Output Power: Up to 13W
Power Consumption:
- Standby: <1W
- Full Load: <13W
Conversion Efficiency: ≥82%
Isolation Protection: 1500V High Voltage Isolation (Input to Output)
Operating Temperature: -20°C to +55°C
Operating Humidity: 5%–90% RH (Non-condensing)
Storage Temperature: -40°C to +85°C
Storage Humidity: 5%–95% RH (Non-condensing)
Dimensions (L×W×H): 85 × 31 × 26 mm
Cable Length: ≤150 mm
Net / Gross Weight: <0.1 kg / <0.15 kg
Lightning Protection: 4KV (8/20µs)
Protection Level: IP40
Warranty: 1 Year with Lifelong Maintenance Support

Over View

Document

TN3PIAC-at is a 10/100M PD PoE Splitter Cable designed to provide both data and power to non-PoE network devices through a PoE switch.
It features 1 × 10/100Base-TX RJ45 input port, 1 × 8P male output port for data, and 1 × DC5521 power output port.
The device enables non-PoE terminals to operate via PoE switches, expanding deployment flexibility for security monitoring and wireless networks.
Compliant with IEEE 802.3af/at standards and supports both End-span (1/2+, 3/6-) and Mid-span (4/5+, 7/8-) power supply modes.
Provides up to 13W output power with more than 82% conversion efficiency and low ripple output.
Built with flame-retardant ABS + PC housing for enhanced safety and durability.
Includes short-circuit, over-current, and over-temperature protection mechanisms.
Supports 1500V high-voltage isolation (input to output) and 2KV port isolation protection.
Plug-and-play design with no configuration required, simplifying installation and reducing maintenance costs.

For order details and product specifications download.
