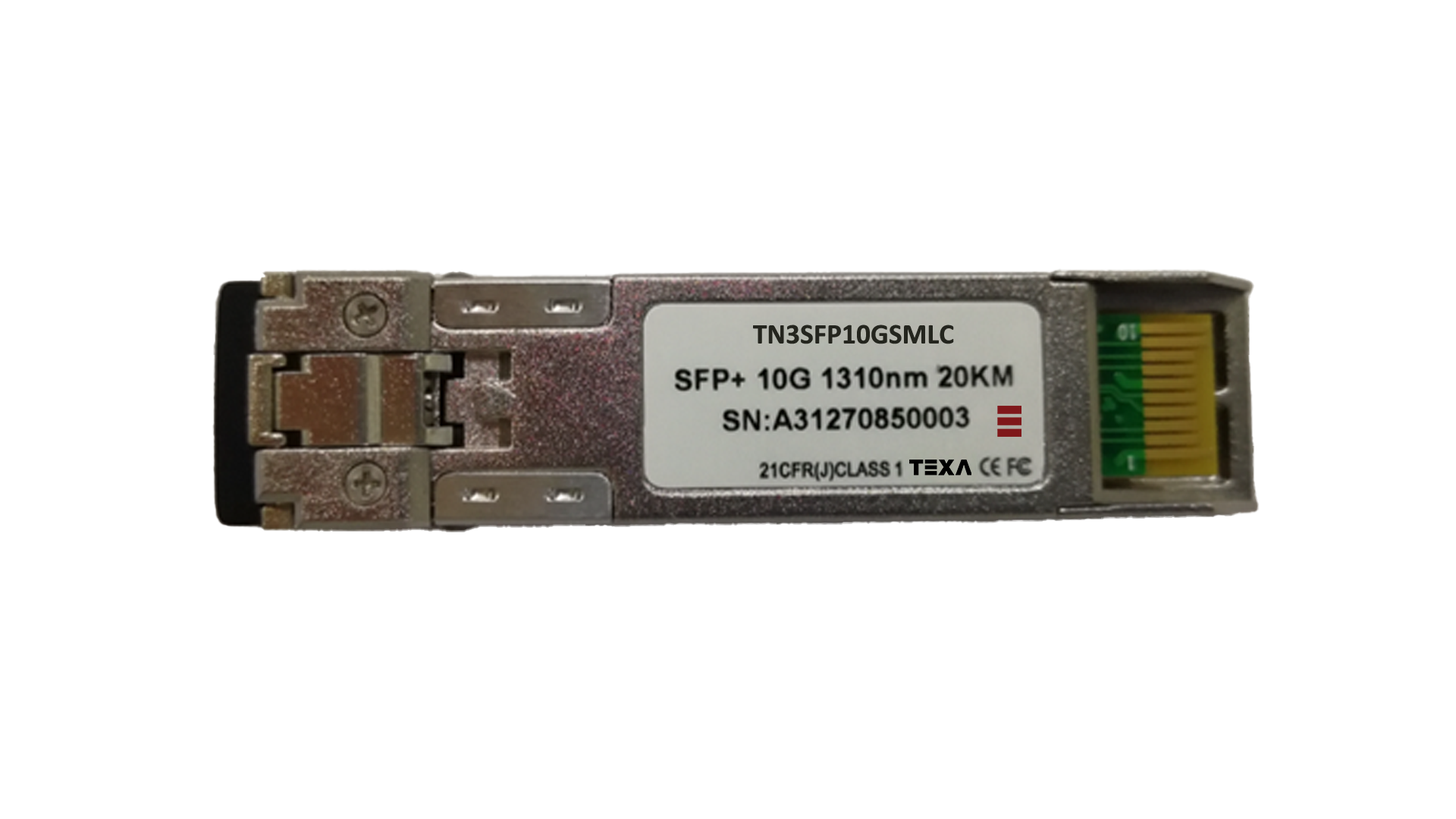

10Gb/s SFP+ 1310nm 20km Op�cal Transceiver

Specifications

Model: TN3SFP10GSMLC

Form Factor: SFP+
Data Rate: 9.95Gb/s to 10.5Gb/s
Wavelength: 1310nm
Transmission Distance: Up to 20km
Fiber Type: Single Mode Fiber (SMF)
Connector Type: Duplex LC
Standards Compliance: SFF-8431, SFF-8432, IEEE 802.3ae 10GBASE-LR/LW
Low Power Consumption: <1W
Power Supply Voltage: 3.3V (3.13V–3.47V)
Maximum Supply Current: 285mA
Operating Temperature: 0°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 0% to 85%
Transmitter Type: Uncooled 1310nm DFB Laser
Receiver Type: PIN Photodetector
Average Output Power: -5 to +1 dBm
Receiver Sensitivity: Up to -14.4 dBm
Optical Interface: Compliant with IEEE 802.3ae
Digital Diagnostic Monitoring (DDM): Temperature, Voltage, Bias Current, Tx Power, Rx Power
Hot Pluggable SFP+ Footprint
Supports 10GBASE-LR/LW and 10G Fiber Channel

Over View

Document

The TN3SFP10GSMLC is a high-performance 10Gb/s SFP+ optical transceiver designed for 10G Ethernet transmission up to 20km over Single Mode Fiber (SMF). Operating at 1310nm wavelength, it complies with SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-LR/LW standards, ensuring reliable and stable long-distance data communication.

Featuring low power consumption (<1W), hot-pluggable SFP+ form factor, and Digital Diagnostic Monitoring (DDM) support, this module provides real-time monitoring of temperature, voltage, bias current, and optical power. It is optimized for high performance and cost efficiency, making it ideal for telecommunications, data centers, enterprise networks, and 10G fiber channel applications.

For order details and product specifications download.
