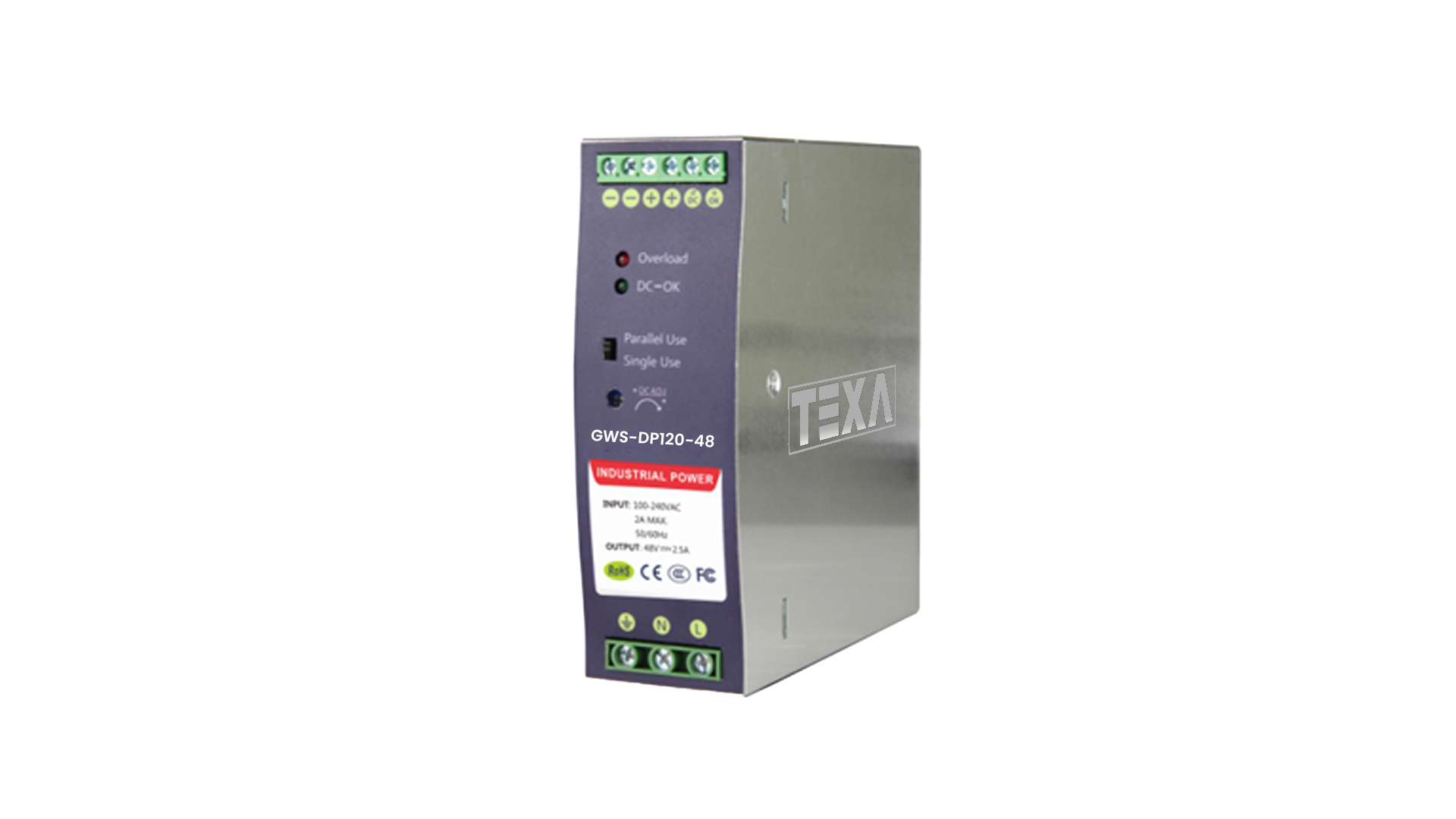

120W/48V Industrial DIN Rail Power Supply

Specifications

Model: GWS-DP120-48

Output Power: 120W
Output Voltage: 48V DC
Input Voltage Range: AC 90–264V
DIN Rail Mounting: TS-35/7.5 or TS-35/15
Efficiency: Up to 90%
Operating Temperature: -40°C to 70°C (with air circulation)
Metal Housing Design for Enhanced Heat Dissipation
Constant Current Mode Overload Protection
Protection Functions: Short Circuit, Over Current, Over Voltage
Compliant with EN61000-3-2 Harmonic Current Standard
Meets EMC Standards
100% Full Load Aging Test
High Reliability and Long Service Life
Suitable for Inductive and Capacitive Load Applications
Applications: Industrial Control Systems, Semiconductor Manufacturing Equipment, Factory Automation, Electromechanical Equipment

Over View

Document

The GWS-DP120-48 is a high-efficiency 120W / 48V industrial DIN rail power supply engineered to deliver reliable and stable power for demanding industrial applications. Designed in accordance with German industrial standards, it supports installation on TS-35/7.5 and TS-35/15 DIN rails and operates within a wide AC input range of 90–264VAC.

With up to 90% efficiency and a durable metal housing for improved heat dissipation, the GWS-DP120-48 ensures dependable operation in harsh industrial environments. It operates reliably in ambient temperatures from -40°C to 70°C under air circulation conditions. Equipped with constant current overload protection and comprehensive safety mechanisms, it is ideal for industrial control systems, factory automation, semiconductor equipment, and electromechanical applications.

For order details and product specifications download.
