24W/24V Industrial DIN Rail Power Supply

Specifications

Model: GWS-DP24-24

Output Power: 24W
Output Voltage: 24V DC
Input Voltage Range: AC 90–264V
DIN Rail Mounting: TS-35/7.5 or TS-35/15
Efficiency: Up to 89%
Operating Temperature: -40°C to 70°C (with air circulation)
Metal Housing Design for Improved Heat Dissipation
Constant Current Mode Overload Protection
Protection Functions: Short Circuit, Over Current, Over Voltage
Compliant with EN61000-3-2 Harmonic Current Standard
Meets EMC Standards
100% Full Load Aging Test
High Reliability and Long Service Life
Suitable for Inductive and Capacitive Load Applications
Applications: Industrial Control Systems, Semiconductor Manufacturing Equipment, Factory Automation, Electromechanical Equipment

Over View

Document

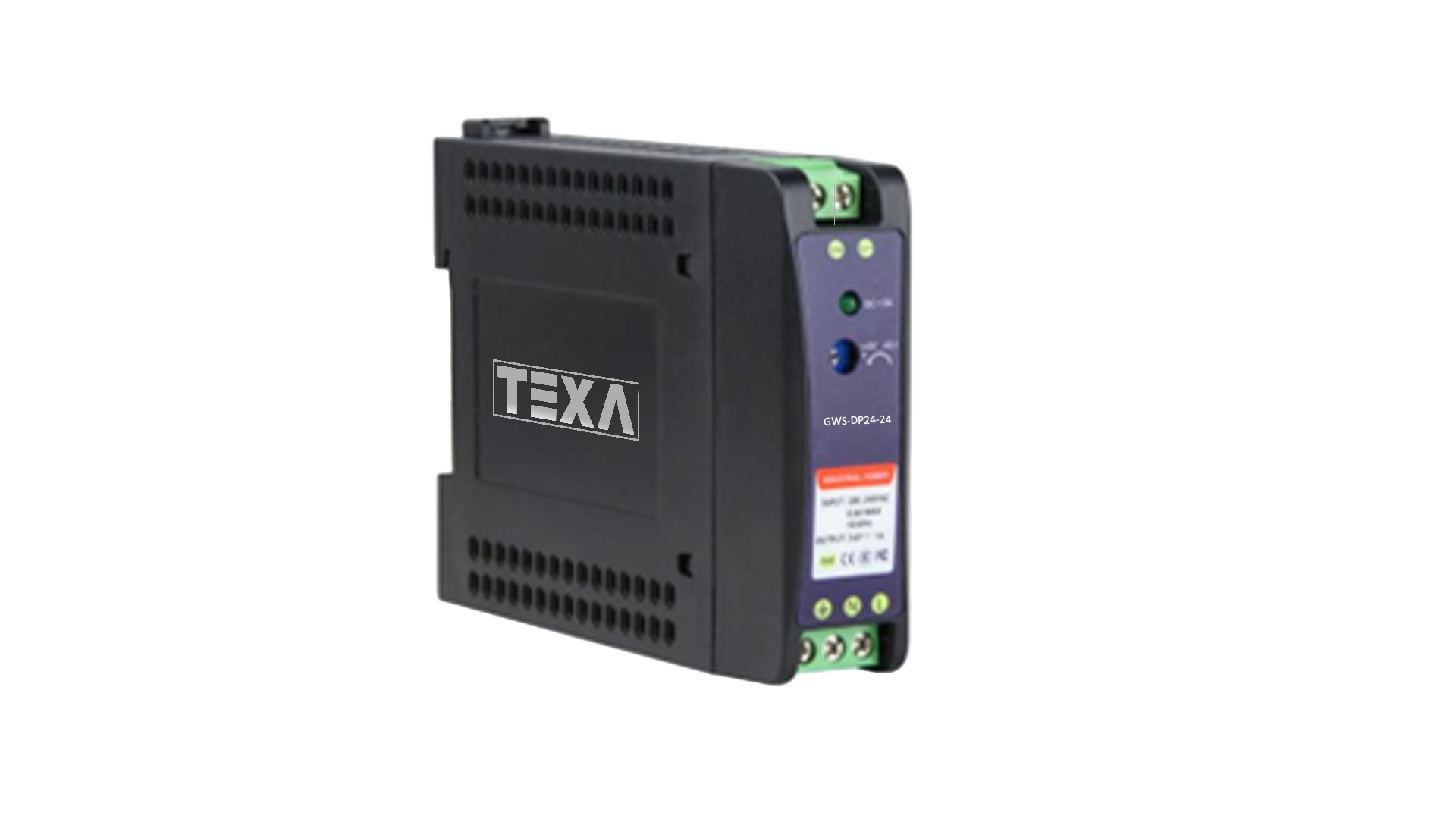

The GWS-DP24-24 is a 24W / 24V industrial DIN rail power supply designed for reliable performance in industrial automation and control systems. Built to German industrial standards, it supports installation on TS-35/7.5 and TS-35/15 DIN rails and operates with a wide AC input range of 90–264VAC.

Featuring high efficiency up to 89%, a rugged metal housing for enhanced heat dissipation, and stable operation within a wide temperature range of -40°C to 70°C, the GWS-DP24-24 ensures dependable performance in harsh environments. With built-in protection against short circuit, overload, overcurrent, and overvoltage, it is an ideal power solution for factory automation, semiconductor equipment, and industrial control applications.

For order details and product specifications download.
