Specifications

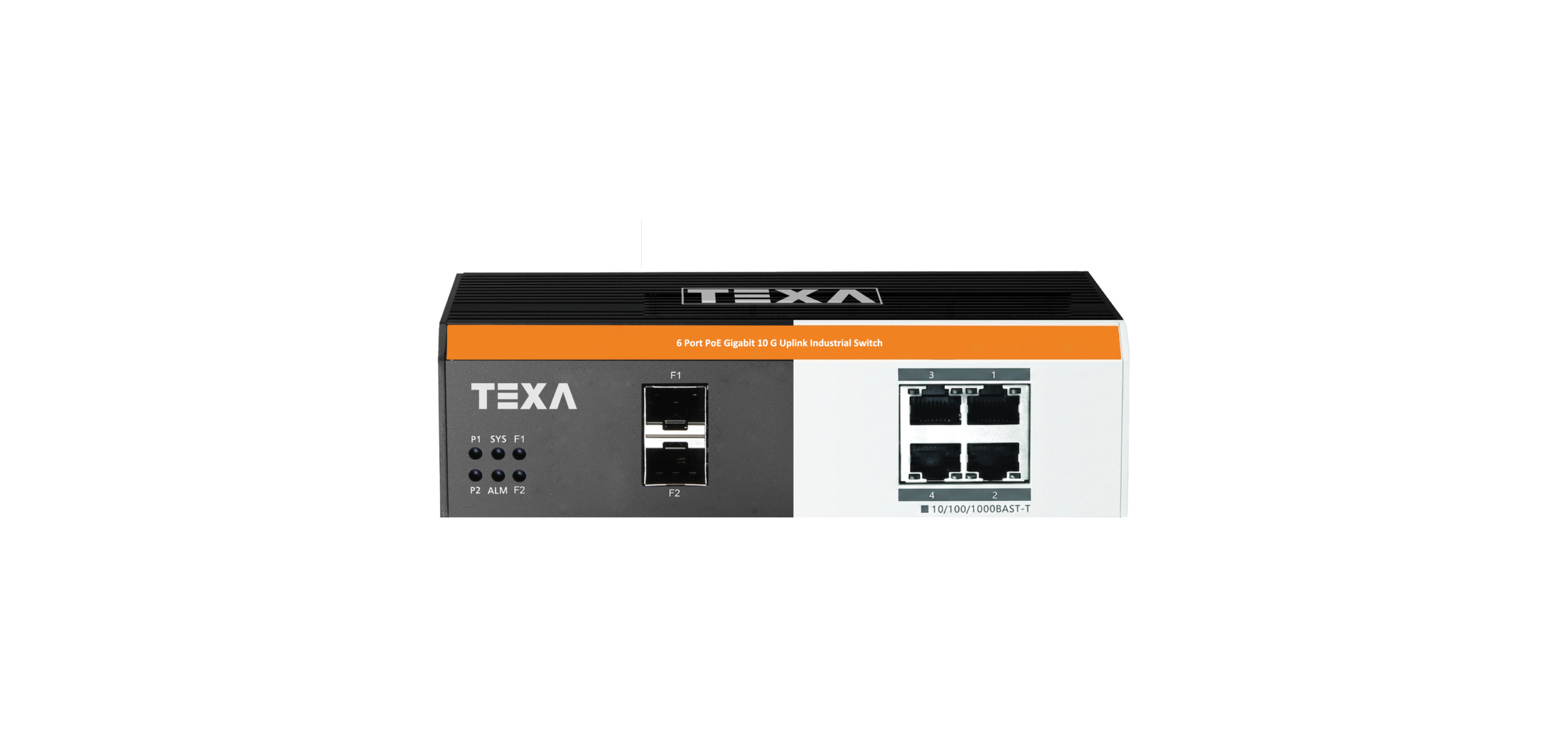

Model: TN3M6P10GUPSW
Classification: 6-Port PoE Gigabit 10G Uplink Industrial Switch
Key Features
- 4 × Gigabit PoE RJ45 Ports
- 2 × Gigabit SFP Uplink Ports
- Supports IEEE 802.3af/at PoE
- Up to 30W PoE Output per Port
- AI VLAN, AI PoE & AI Extend
- 250m Long Distance PoE Support
- 10G Industrial Uplink Switch
- Supports STP / RSTP / MSTP
- VLAN, QoS & ACL Support
- SNMP, SSH & WEB Management
- IPv6 & DHCP Snooping Support
- 6KV Lightning Protection
- IP40 Industrial Metal Housing
- DIN Rail Mount Installation
- Wide Operating Temperature -40°C to 75°C
Over View
Document
TN3M6P10GUPSW is a 6-Port PoE Gigabit 10G Uplink Industrial Switch designed for industrial networking, surveillance, wireless coverage, and intelligent transportation applications. It features 4 Gigabit PoE ports and 2 Gigabit SFP uplink ports with support for IEEE 802.3af/at standards and up to 30W PoE output per port.
The switch supports advanced Layer 2 management features including VLAN, QoS, ACL, STP/RSTP/MSTP, SNMP, and IPv6 management. Built with an IP40 industrial-grade metal housing, 6KV lightning protection, dual DC power input, and a wide operating temperature range of -40°C to 75°C, it ensures stable performance in harsh industrial environments.
For order details and product specifications download.
