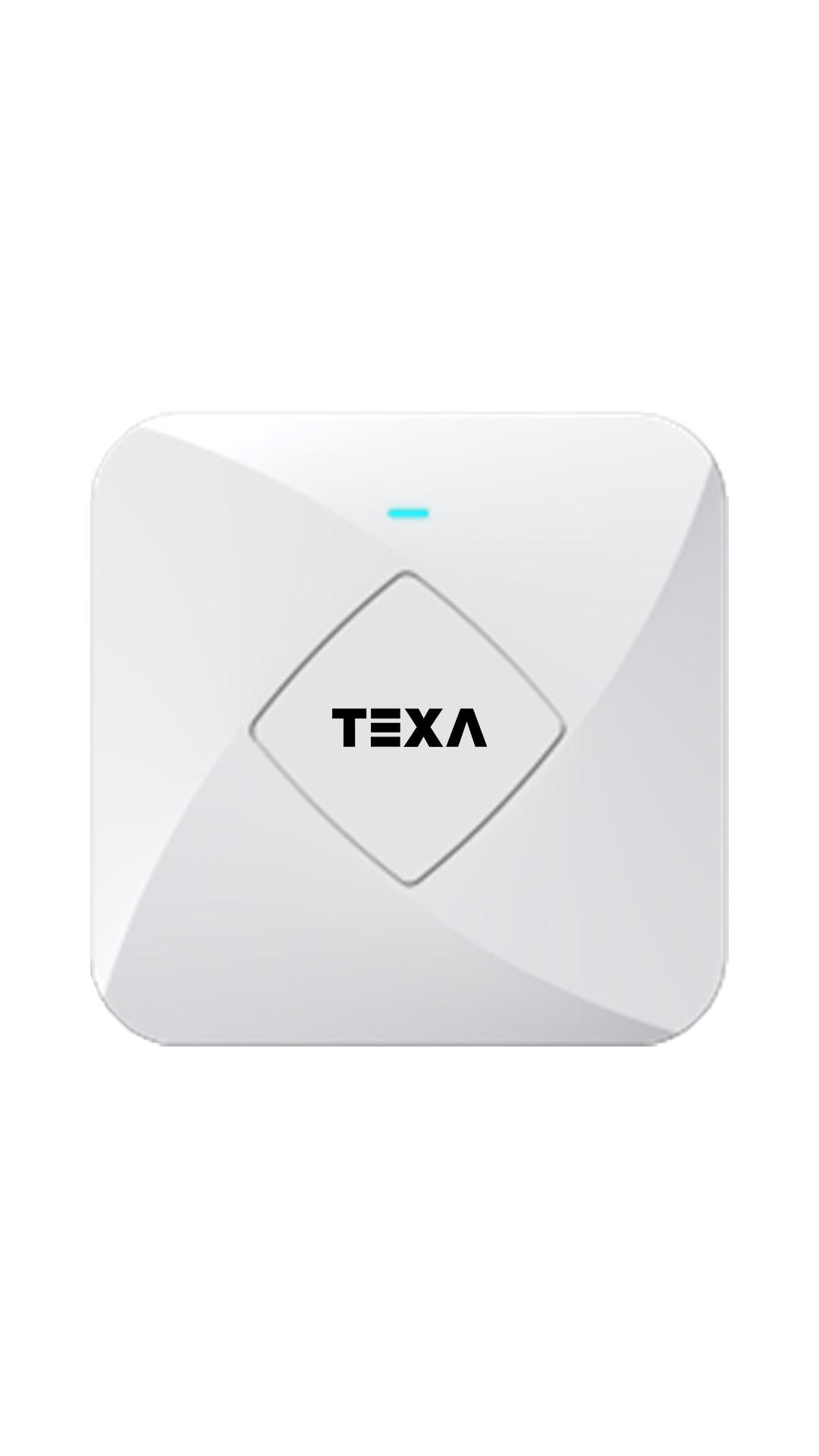

Wi-Fi 7 Dual-Radio Ceiling Access Point

Specifications

Model: TN8CAP7
Classification: Wi-Fi 7 Dual-Radio Ceiling Access Point

Key Features

Wireless Standard: IEEE 802.11a/b/g/n/ac/ax/be
Wi-Fi Speed: Up to 5100Mbps
2.4GHz Speed: 688Mbps
5GHz Speed: 4323Mbps
Bandwidth: 160MHz Ultra-Wide
Ethernet Port: 1× 2.5G RJ45 Port
MU-MIMO: 2×2 (2.4G) / 3×3 (5G)
Wireless Technologies: MLO, OFDMA, MU-MIMO, BSS Color
Power Supply: IEEE802.3af/at PoE & DC 12V
Maximum Power Consumption: 12W
Wireless Roaming: Fast Roaming Supported
SSID Support: Up to 8 SSIDs
Security: WPA/WPA2/WPA3-PSK
Network Features: VLAN, DHCP, Static Routing

Over View

Document

The TN8CAP7 is a high-performance Wi-Fi 7 dual-radio ceiling access point designed to deliver ultra-fast and stable wireless connectivity in high-density environments. Supporting 160MHz bandwidth and simultaneous dual-band operation, it provides a maximum aggregated wireless speed of up to 5100Mbps (2.4GHz: 688Mbps, 5GHz: 4323Mbps), ensuring smooth 4K streaming, low-latency applications, and high-capacity networking.

Equipped with a 2.5G uplink Ethernet port, advanced MLO technology, MU-MIMO, and OFDMA, the TN8CAP7 significantly enhances throughput, reduces interference, and optimizes overall network efficiency. It supports both IEEE 802.3af/at PoE and 12V DC power input for flexible deployment. With fast roaming, centralized AC management, and cloud platform support, it is ideal for schools, hotels, dormitories, and enterprise environments.

For order details and product specifications download.
